Tested and 3P Category certified for Connecting Hardware Category 6A transmission requirements of ANSI/TIA Generic Cabling Standard 568-C.2, and IEC test standard 60512-27-100. Meets requirements acc. following standards: IEC 60603-7-51, ANSI/TIA/EIA 568-C.2, IEC 60512-27-100, ISO/IEC 11801 am. 2.
- Material enclosure: Zinc diecast - Nickel plated.
- Material contacts: Phosphor bronze.
- 360° cable screen connection for enhanced EMI protection.
- Contacts coating: Nickel, gold plated 0,5µ.
- Operating Temperature: -10°C ~+60°C (ISO/IEC 11801,ANSI/TIA/EIA 568 B.2).
- Material PCB: FR4, UL 94V-0, multilayer 1,45mm thickness.
- Mating cycles: ? 750 (ISO/IEC 11801, IEC 60603-7-5).
- Diameter Cu-Conductor: AWG (26/1 ... 23), stranded and solid.

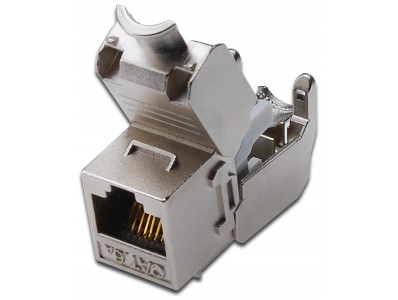

- RJ 45 jack, female, for patch panel installation.
- Compact form allows an installation of 24 x in 483mm (19") 1U blank Panel.
- Suitable for bracket typ DN-91410, DN-91411, DN-91412.
- Opening size acc. Keystone Standard 19.35 mm x 14.8 mm.
- Tool free cable installation via LSA stripes, color coded according to EIA/TIA 568 A & B.
- Suitable for design wall plates for several well-known switching programs e.g. Busch-Jaeger part number: 1812 or 1866EB.
- Suitable for design wall plates for switching program PEHA part number: D 600 MJ8.
- Suitable for design wall plates for switching program FELLER (CH) EDIZIOdue part number e.g.: 1183-028.FMI.F.61.
- Fits easily in wall- and floor boxes, patch panels, desk boxes through short depth. | Andere klanten bekeken ook |
